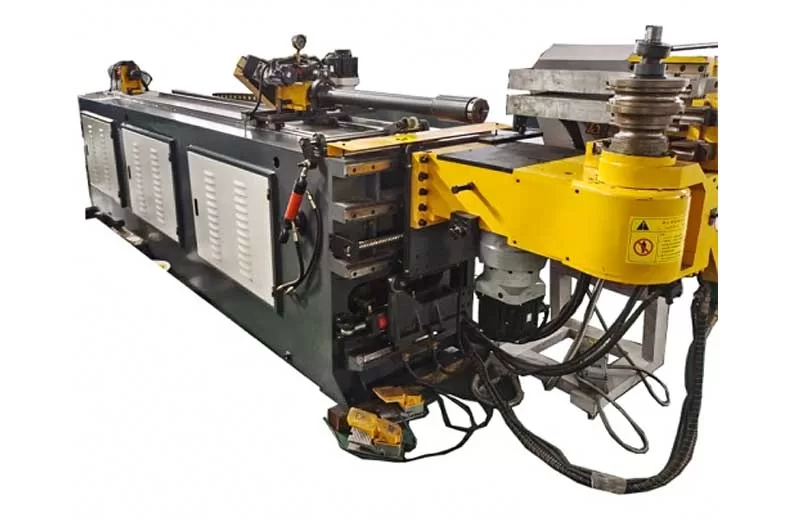

CNC Tube Bending Machine
Model No. : CTK-38CNC-4Z-2S
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
Typical work includes furniture frames, gym equipment and handrail bends where consistent springback control matters. Shops use it for exhaust, boiler and heat-exchanger tube bending in batch production. Compare mandrel and wiper tooling availability for thin-wall work. It suits makers of automotive line parts, seat frames and tubular brackets. Match the machine’s maximum bending diameter with wall factor in mind, not just tube OD. Request a factory quote including blades or tooling, loading and after-sales support.
Guides from the factory floor
- Pipe bending machines in depth — types, tooling and selection
Buy direct from the Chittak factory in Foshan, China: MOQ one set, FOB / CIF / EXW incoterms, ocean shipping to major ports and factory-direct pricing.
Robust construction for longevity in CNC bending
Boasts a robust and durable construction designed to withstand the rigorous demands of CNC tube bending operations.
Minimizes downtime by ensuring longevity and reliability in bending applications.
Customizable CNC bending parameters for tailored results
Allows operators to customize bending parameters using the CNC system, adapting to specific project requirements.
Provides flexibility and adaptability to varying tube materials and thicknesses through precise CNC adjustments.
Excellence in CNC tube bending technology
Upholds the tradition of precision in CNC tube bending technology, delivering exceptional results through advanced CNC control.
Sets a benchmark for craftsmanship in tube bending with the revolutionary CNC Tube Bending Machine CTK-38CNC-4Z-2S.
| Max. Bending Diameter for Carbon Steel | ф38mm * 2.0 |
| Max. Bending Radius | R175mm |
| Min. Bending Radius | Based on the pipe diameter |
| Min. Bending Angle | 190° |
| Standard Core Length | 2000mm |
| The Number of Bends Can be Set Per Pipe | 20 |
| Max. Feeding Length | 2000mm |
| Control System | PLC |
| Machinable Material | Carbon Steel |
| Core Components | PLC, Bearing, Motor |
| Power Type | CNC |
| Degree Of Automation | Automatic |
| Solenoid Reversing Valve Brand | Yuken |
| Relief Valve Brand | Yuken |
| Regulating Valve Brand | Yuken |
| Sensor Brand | Omron |
| Cylinder Brand | Hualiang |
| Microcomputer Control System Brand | Delta |
| Switch Brand | Meanwell |
| AC Contactor Brand | Schneider |
| Thermal Overload Relay Brand | Schneider |
| Precision Ball Screw Brand | TBI |
| Certification | GS |
| Warranty Period | 1 Year |
| Core Component Warranty Period | 2 Years |
