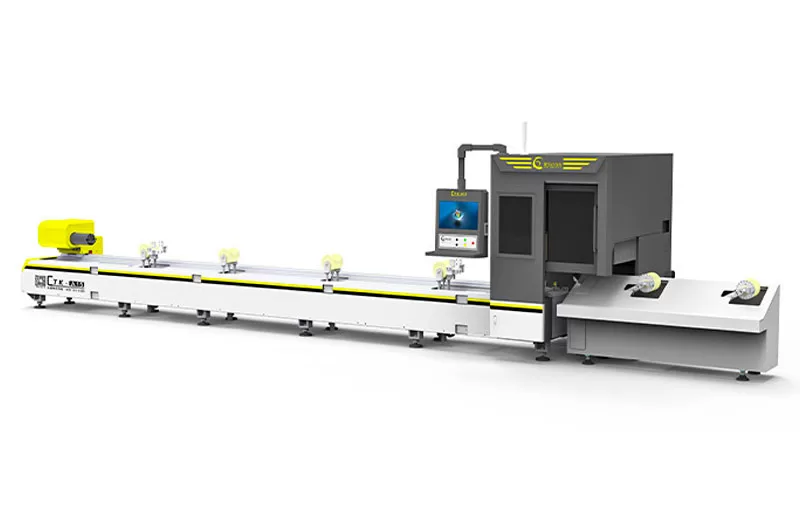

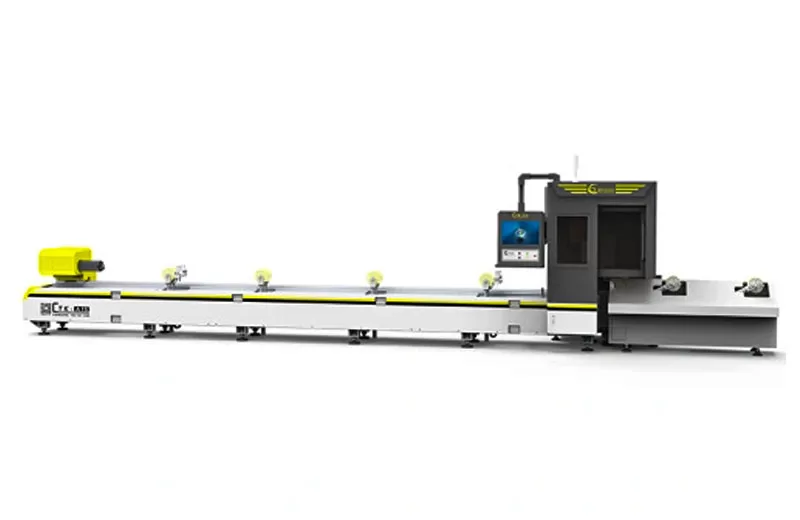

CNC Laser Pipe Cutting Machine
Model No. : CTK-A15
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
Wide processing range & Super processing ability
Please see the parameter table for details.
Reinforced solid bed
After annealing and secondary aging treatment, high stability, suitable for high-speed cutting.
Small footprint, saving about 20% area.
Intelligent pipe cutting machine system
Speed up production efficiency.
Double-chuck straddle cutting and short tail
Cutting head spans from the front of the front chuck to the back, so that saving the tail material which is >40mm.
Fully enclosed chuck prevents iron filings from flying in to protect the chuck.

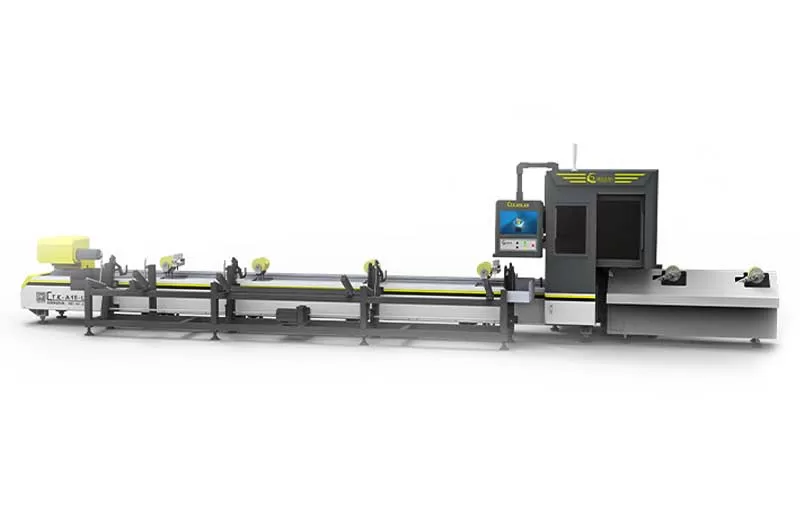

Simple automatic feeding (optional)
Simple design, stable structure and high rigidity.
Suitable for round and square tubes.
Cycle time is about 10 seconds.

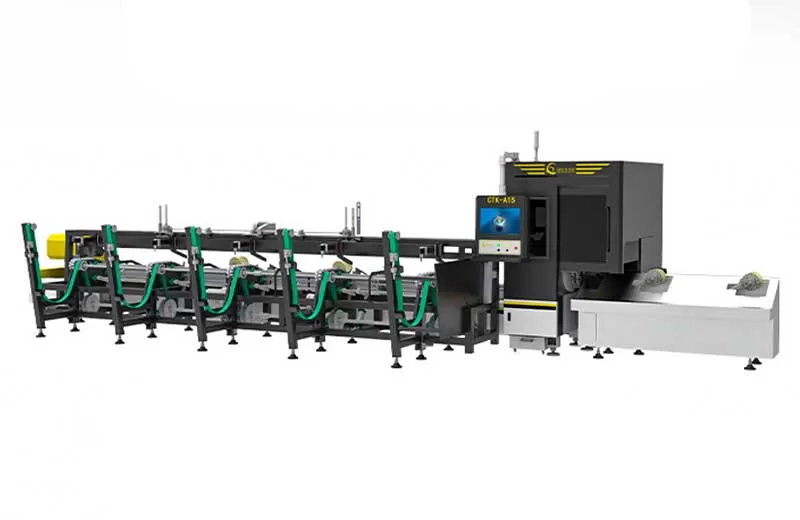

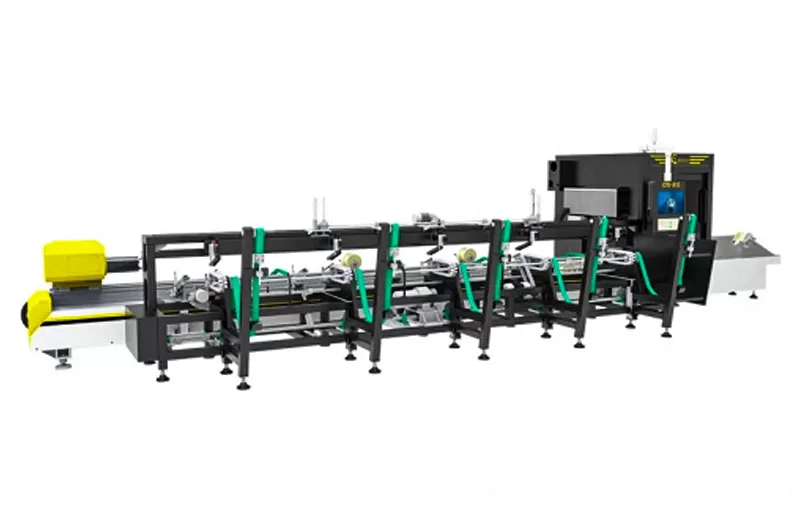

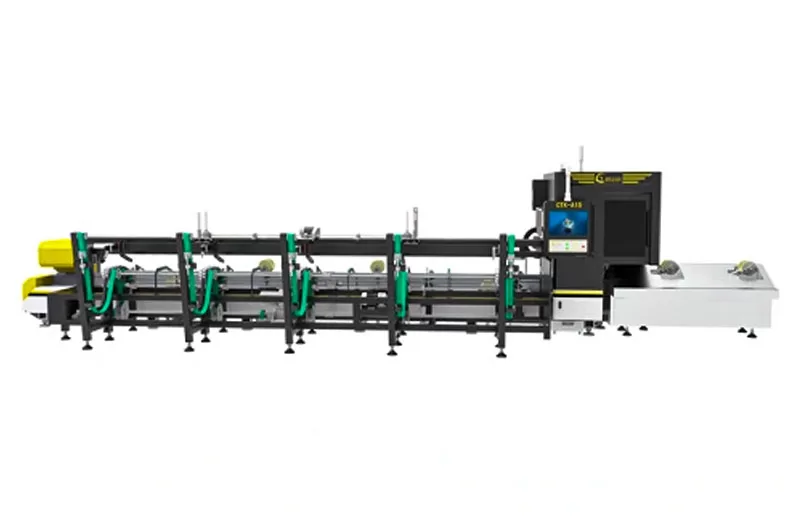

Fully automatic feeding (optional)
Full servo control and parameter control without manual intervention Chain transmission, segmented link, frequency conversion speed control, Suitable for round and square tubes.
| Laser Power | 1000W / 1500W / 2000W / 3000W |
| Working Voltage | 220V / 380V, 50HZ |
| Pipe Processing Range | Round Tube: φ15mm – φ160mm Rectangular Tube / Special-shaped Tube: Circumscribed Circle ≤ φ160mm |
| Tail Length | ≥ 40mm (According to the size of the specific pipe product) |
| Size | About 8950mm × 2200mm × 2555mm (Excluding splice assembly) |
| Cutting Materials | Stainless Steel, Carbon Steel, Galvanized, Iron, Copper, Aluminum |
| Cutting Shapes | Round Tube, Rectangular Tube, Special-shape Tube, I-beam, Channel Steel, Angle Iron |
| Laser Type | Fiber Laser |
| Support Graphic Format | Plt, Ai, Dxf, Bmp, Dst, Dwg, Las, Dxp |
| Core Components | Motor, PLC, Gear |
| Whether CNC | Yes |
| Cooling Method | Water Cooling |
| Laser Generator Brand | BWT |
| Servo Motor Brand | Inovance |
| Linear Guide Brand | Hiwin |
| Control System Brand | Cypcut |
| Laser Head Brand | Ospri |
| Cooling System Brand | Jizhi / Blue Penguin |
| Reducer Brand | Motovario |
| Electrical Element Brand | Schneider / Honeywell |
| Certification | ISO, CE |
| Warranty Period | 1 Year |
| Core Component Warranty Period | 2 Years |
