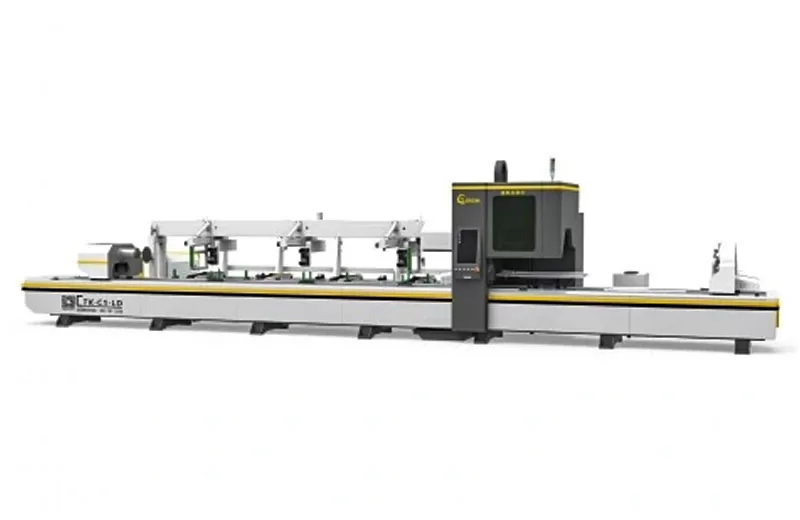

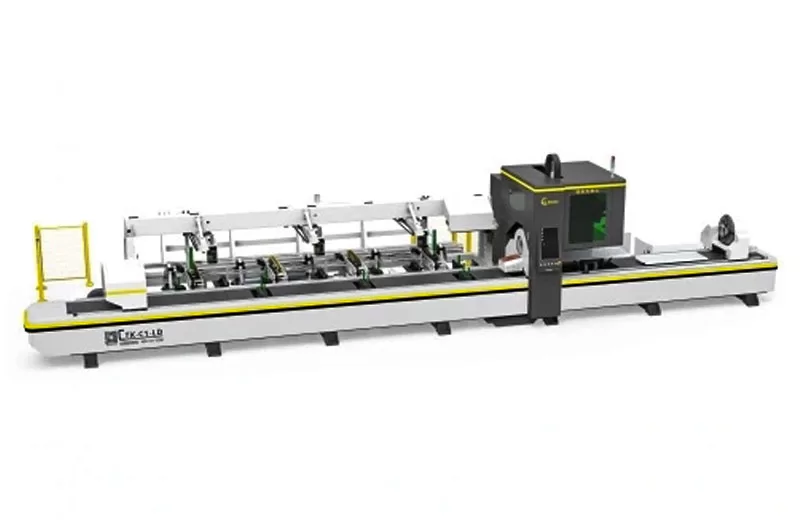

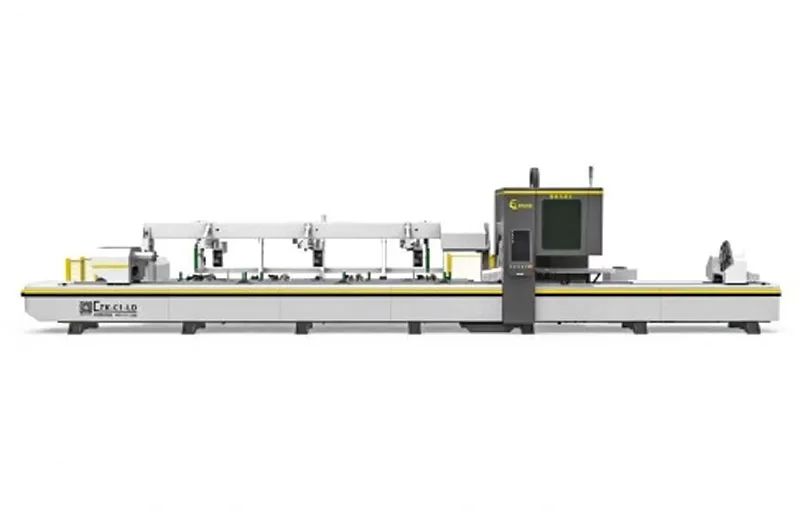

Round and Square Tube Laser Cutting Machine
Model No. : CTK-C1
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
Description
Many shape processing
Please see the parameter table for details.
Cutting zero tailing
The three-chuck structure is adopted, which saves more tailings and saves the cost of raw materials.
Intelligent pipe cutting machine system
Speed up production efficiency.
Parameter
| Laser Power | 1000W / 1500W / 2000W / 3000W |
| Working Voltage | 380V, 50HZ or customized |
| Idle Speed | 100m / min |
| Max. Speed of Chuck | 150r / min |
| Pipe Processing Range | Round Tube: φ15mm – φ160mm Rectangular Tube / Square Tube / Special-shaped Tube: Circumscribed Circle < φ160mm |
| Tail Length | ≥ 0mm (According to the size of the specific pipe product) |
| Size | About 13000mm × 6450mm × 2500mm |
| Max. Acceleration | 1.5G |
| Cutting Materials | Stainless Steel, Carbon Steel, Galvanized, Iron, Copper, Aluminum |
| Cutting Shapes | Round Tube, Rectangular Tube, Special-shape Tube, I-beam, Channel Steel, Angle Iron |
| Laser Type | Fiber Laser |
| Support Graphic Format | Plt, Ai, Dxf, Bmp, Dst, Dwg, Las, Dxp |
| Core Components | Motor, Gear |
| Whether CNC | Yes |
| Cooling Method | Water Cooling |
| Laser Generator Brand | BWT |
| Servo Motor Brand | Inovance |
| Control System Brand | Cypcut |
| Laser Head Brand | Ospri |
| Reducer Brand | Beito |
| Electrical Element Brand | Schneider |
| Machine Bed and Accessories Brand | Chittak |
| Certification | ISO, CE |
| Warranty Period | 1 Year |
| Core Component Warranty Period | 2 Years |
