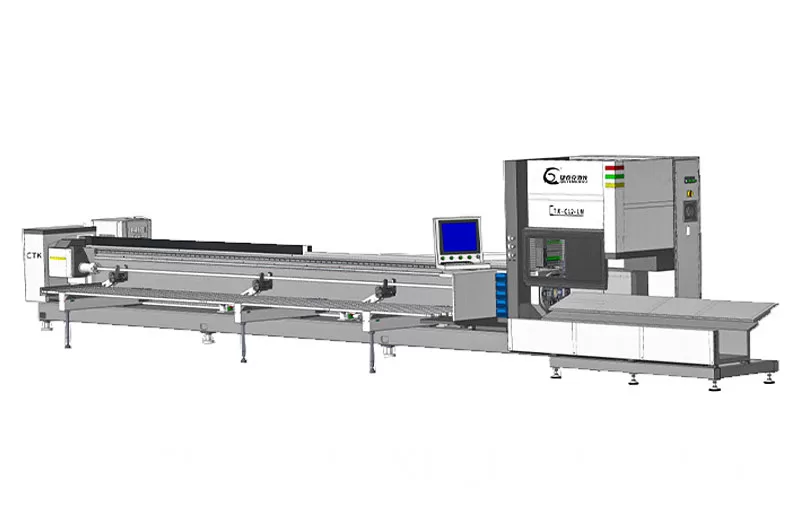

CNC Fiber Laser Cutting Machine
Model No. : CTK-C12-LN
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
Super processing performance
Please see the parameter table for details.
Skip cut, short tailing
When cutting the last workpiece, the front chuck moves forward, and the cutting head performs cutting process behind the front chuck, the tailing isjust 40 mm.
Cypetube control system, Know more about pipe cutting
The high performance Cypetube control system is a PC numerical control system based on WINDOWS, which has the characteristics of fast interpolation calculation speed and convenient operation.
Machine bed is solid and durable
The main machine bed is welded with plate and tube, which conforms to the mechanical structure and has good cutting stability.
Standard column type feeding system
The feeding does not need to be stopped, and it can realize 24-hournon-stop operation.
| Laser Power | 1500W / 2000W / 3000W |
| Pipe Processing Range | Round Tube: φ10mm – φ120mm Square Tube: φ10mm – φ80mm (Side Length) Special-shaped Tube: Circumscribed Circle ≤ φ120mm |
| Manual Feeding Length | 7000mm |
| Automatic Feeding Length | 5800mm ~ 6500mm (Non-standard 5000mm ~ 7000mm) |
| Cycle Feeding | First Feeding ≤ 50, Subsequent Feeding ≤ 17 |
| Loader Carrying | 300kg |
| The Max. Load-bearing Capacity of a Single Pipe for Manual Feeding | 40kg |
| The Max. Load-bearing Capacity of a Single Pipe with Automatic Feeding | 40kg |
| Cutting Materials | Stainless Steel, Carbon Steel, Galvanized, Iron, Copper, Aluminum |
| Cutting Shapes | Round Tube, Rectangular Tube, Special-shape Tube, I-beam, Channel Steel, Angle Iron |
| Laser Type | Fiber Laser |
| Support Graphic Format | Plt, Ai, Dxf, Bmp, Dst, Dwg, Las, Dxp |
| Core Components | Motor, Gear, Gearbox, Bearing |
| Whether CNC | Yes |
| Cooling Method | Water Cooling |
| Laser Generator Brand | BWT |
| Servo Motor Brand | Inovance |
| Linear Guide Brand | Hiwin |
| Control System Brand | Cypcut |
| Laser Head Brand | Ospri |
| Reducer Brand | Shimpo |
| Electrical Element Brand | Schneider |
| Machine Bed and Accessories | Chittak |
| Front and Rear Pneumatic Chuck | Chittak |
| Certification | ISO, CE |
| Warranty Period | 1 Year |
| Core Component Warranty Period | 2 Years |
