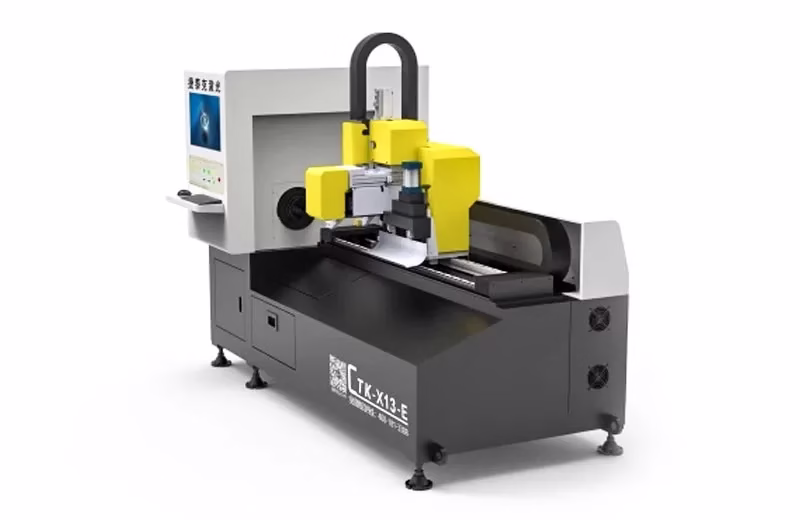

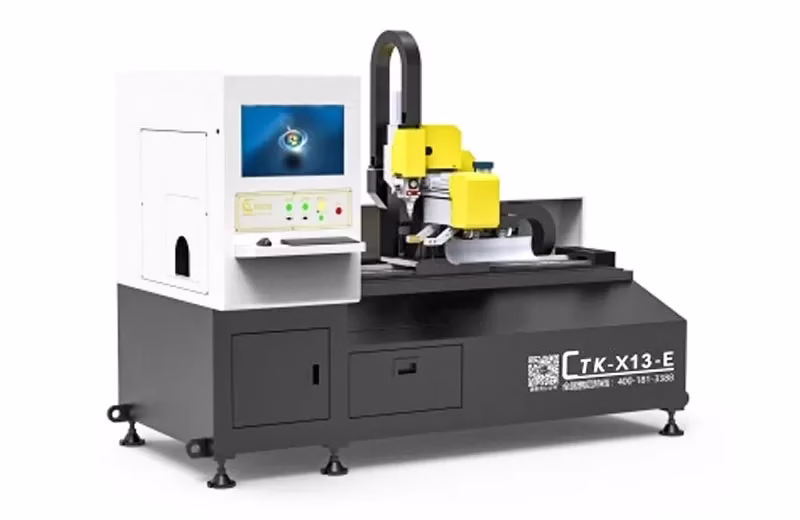

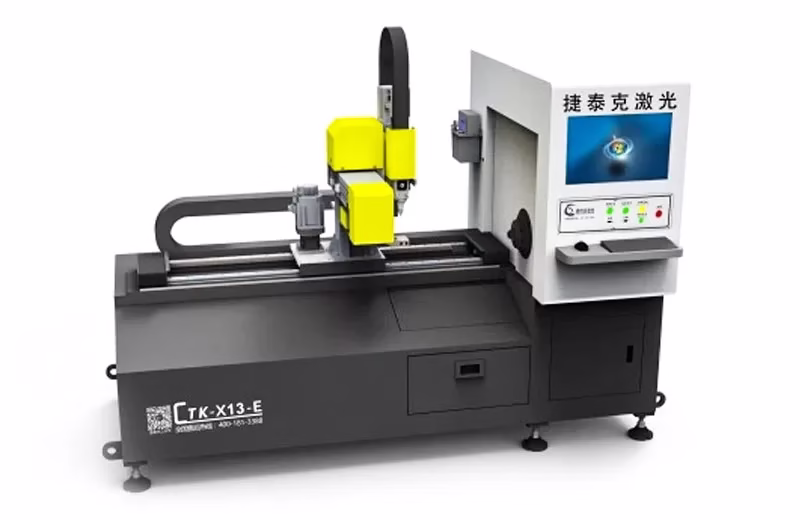

Metal Fiber Laser Cutting Machine
Model No. : CTK-X13-E
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
Super processing ability
Please see the parameter table for details.
Maximize pipe utilization
Tail material>40mm, save more cost.
Automatically process the head and tail of the material.
Using the self-developed cutting system
With more than 20 years of process research and developmen texperience, the cutting system is independent research, which is mature and easy to learn and operate, worker can program on the machine, map layout, no need for external layout software.
Support multi-workpiece layout, island common edge, etc., common edge cutting can cut one knife less, reduce material waste, and improve cutting efficiency.
High precision chuck
The chuck speed can reach more than 150 rpm.
The clamping speed is fast, and the clamping force can be adjusted flexibly. It can realize loading and unloading without stopping.
Left and right machine customization
One person can see more than one machine, and can reduce machine floor space and turn over area, save factory rent.
| Laser Power | 1000W, 1500W / 2000W / 3000W |
| Pipe Processing Range | Round Tube: φ8mm – φ80mm Rectangular Tube: φ10mm × φ10mm – φ60mm × φ60mm (Diagonal less than 85mm) |
| Tailing Length | ＞40mm |
| Size | About 2700mm x 1500mm |
| Max. Single Tube Weight | 25kg |
| Cutting Materials | Stainless Steel, Carbon Steel, Galvanized, Iron, Copper, Aluminum |
| Cutting Shapes | Round Tube, Rectangular Tube, Special-shape Tube, I-beam, Channel Steel, Angle Iron |
| Laser Type | Fiber Laser |
| Support Graphic Format | Plt, Ai, Dxf, Bmp, Dst, Dwg, Las, Dxp |
| Core Components | Motor, PLC, Pressure Vessel, Other, Bearing, Engine, Gearbox, Pump, Gear |
| Whether CNC | Yes |
| Cooling Method | Water Cooling |
| Laser Generator Brand | BWT |
| Servo Motor Brand | Inovance |
| Linear Guide Brand | Hiwin |
| Control System Brand | Chittak |
| Cutting Head Brand | Ospri |
| Reducer Brand | Motovario |
| Intelligent Air System Brand | SMC / Airtac |
| Electrical Element Brand | Schneider |
| Automatic Oil Filling System Brand | Chittak |
| Certification | ISO, CE, GS |
| Warranty Period | 1 Year |
| Core Component Warranty Period | 2 Years |
