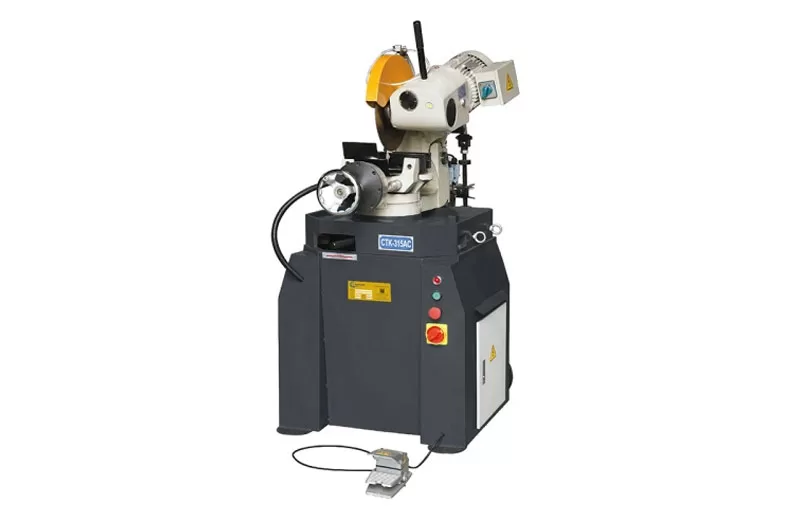

Semi-automatic Pneumatic Cold Saw
Model No. : CTK-315AC
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
It suits stainless and carbon steel tube processors who need bright finishes without heat discoloration. Typical jobs include cutting tube-to-length ahead of benders, chamfering machines and weld cells. For CNC models, review multi-feed length and remnant settings – they decide bar yield. Fabricators use it for aluminum, copper and brass stock as well as steel tube and bar. Check the vise and head miter ranges if you cut 45-degree work. Send your tube schedule to Chittak for an itemized quotation with tooling included.
Guides from the factory floor
- Cold saw buyer’s guide — manual, semi-auto and CNC classes compared
- Cold saw vs band saw — cut quality, heat and blade economics
Buy direct from the Chittak factory in Foshan, China: MOQ one set, FOB / CIF / EXW incoterms, ocean shipping to major ports and factory-direct pricing.
Gearbox
Main use: drive saw blade cutting.
The core component gear of the gearbox are imported from Taiwan, whichis using advanced grinding and vacuum heat treatment technology, with high precision and long service life. In the use process, the noise of the machine head is small, the transmission efficiency is ensured, and the service life is long.
A self-lubricating bearing
It is added at the movable joint between the head and the connecting seat, which can lubricate the connecting shaft in order to prevent the direct friction causing abrasion, so it helps to improve the working life, and accuracy.
Regulating valve
Regulating valve: the control valve imported from Taiwan is adopted, with high machining accuracy, stable flow control and even cutting speed. Fast return speed, improve work efficiency.
| Cutting Capacity (Single Mild Steel Pipe) | Head Swivel | 90º | 45º |
| Max. Round Tube | Φ76mm | Φ63mm | |
| Max. Square Tube | 63mm * 63mm | 50.8mm * 50.8mm | |
| Max. Rectangular Tube | 75mm * 45mm | 60mm * 40mm | |
| Motor Main Drive | YD100L-4 / 2, 380V | ||
| Blade Speed | 50rpm / 100rpm | ||
| Saw Blade Diameter | φ250mm – φ325mm | ||
| Pin Holes | 2 x φ11 x PCD63 | ||
| Air-pressure | 5 – 8 | ||
| Net Weight | 280kg | ||
| Machine Diameter (LxWxH) | About 680mm x 1000mm x 1400mm | ||
| Degree Of Automation | Semi-automatic | ||
| Machinable Materials | Brass / Copper, Stainless Steel, Carbon Steel, Aluminium Alloy | ||
| Core Components | Gearbox, Bearing, Motor | ||
| Warranty Period | 1 Year | ||
