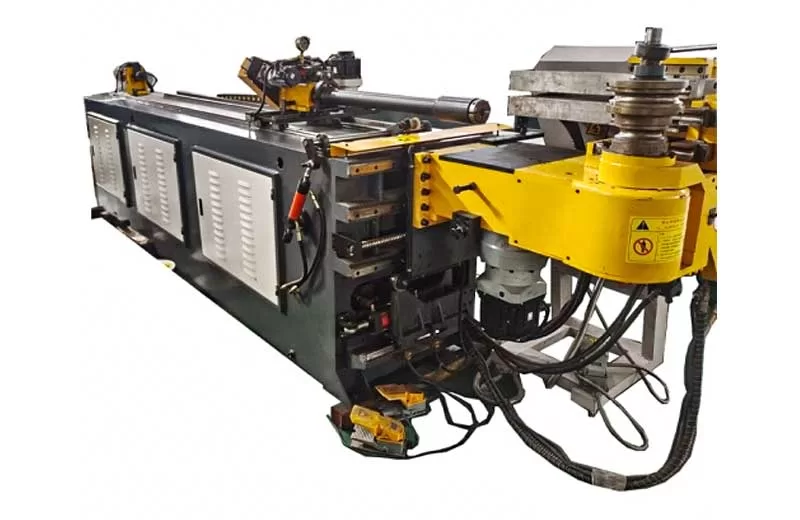

Full Automatic CNC Pipe Bending Machine

Model No. : CTK-38CNC-3Z

Payment Type : T/T, Others

Incoterms : FOB, CIF, EXW

Min. Order : 1 Set

Transportation : Ocean

Port : Foshan Port, Guangzhou Port, Shenzhen Port

Description

Complies with stringent safety standards, ensuring a secure working environment during full automatic CNC pipe bending operations.

Versatile across a spectrum of bending needs, offering accuracy in angular profiles through automated precision.

Minimizes downtime by ensuring longevity and reliability in automated bending applications.

Allows operators to customize bending parameters through the CNC system, adapting to specific project requirements.

Parameter

Max. Bending Diameter for Carbon Steel	ф38mm * 2.0
Max. Bending Radius	R200mm
Min. Bending Angle	185°
Max. Effective Mandrel Length	3150mm
Feeding Length	2000mm
Feeding Speed	1.17m/sec
Bending Accuracy	±0.1°
Bending Speed	Max.171° / sec
Corner Accuracy	±0.1°
Corner Speed	Max. 340° / sec
Power Supply	380V, 50Hz
Control Valve Voltage	24V
Servo Motor For Bending	5KW
Servo Motor For Feeding	1KW
Servo Motor For Rotating	0.75KW
Motor For Oil Hydraulic	4KW
Net Weight	1500Kg
Dimension (L x W x H)	4430mm x 1580mm x 1270mm
Control System	PLC
Machinable Material	Carbon Steel
Core Components	PLC, Bearing, Motor
Power Type	CNC
Degree Of Automation	Automatic
Solenoid Reversing Valve Brand	Yuken
Relief Valve Brand	Yuken
Regulating Valve Brand	Yuken
Sensor Brand	Omron
Cylinder Brand	Hualiang
Microcomputer Control System Brand	Delta
Switch Brand	Meanwell
AC Contactor Brand	Schneider
Thermal Overload Relay Brand	Schneider
Precision Ball Screw Brand	TBI
Certification	GS
Warranty Period	1 Year
Core Component Warranty Period	2 Years
