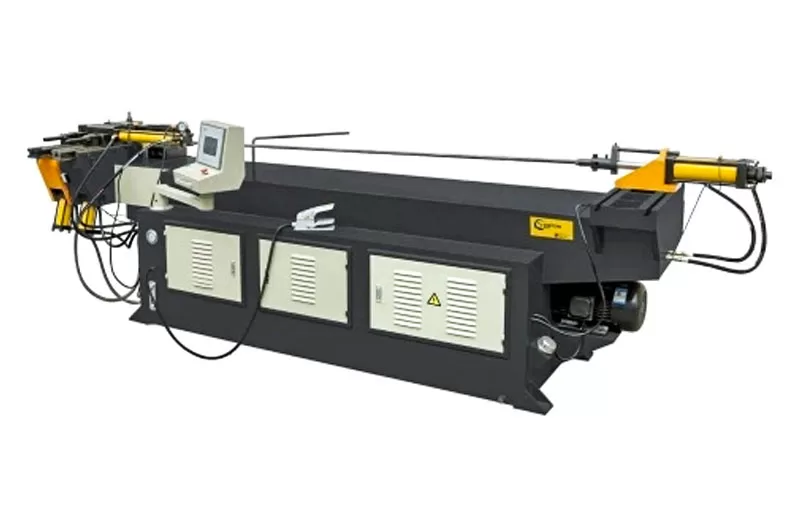

Semi-automatic Hydraulic Pipe Bending Machine
Model No. : CTK-76NC
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
Typical jobs include water-heater coils, condenser bends and refrigeration tube work. It is a common choice for boiler makers and pressure-vessel shops bending precision coils. Hydraulic versus electric drive changes both speed and surface finish; test on your tube. Typical work spans air-conditioning tube, automotive fuel lines and OEM bend batches. Match the machine’s maximum bending diameter with wall factor in mind, not just tube OD. Confirm left-hand or right-hand configuration before ordering – it matters on multi-machine lines. Request the full specification sheet and a cutting video for this model.
Guides from the factory floor
- Pipe bending machines in depth — types, tooling and selection
Buy direct from the Chittak factory in Foshan, China: MOQ one set, FOB / CIF / EXW incoterms, ocean shipping to major ports and factory-direct pricing.
Robust construction for longevity in hydraulic bending
Boasts a robust and durable construction designed to withstand the demands of hydraulic pipe bending operations.
Minimizes downtime by ensuring longevity and reliability in semi-automatic bending applications.
Customizable hydraulic bending parameters for tailored results
Allows operators to customize bending parameters through the hydraulic system, adapting to specific project requirements.
Provides flexibility and adaptability to varying pipe materials and thicknesses through precise hydraulic adjustments in semi-automatic mode.
Excellence in semi-automatic hydraulic pipe bending technology
Upholds the tradition of precision in semi-automatic hydraulic pipe bending technology, delivering exceptional results through the harmonious integration of hydraulic control and semi-automatic efficiency.
| Max. Diameter for Carbon Steel | ф76mm * 2.0 |
| Max. Effective Mandrel Length | 2500mm |
| Max. Bending Radius | R300mm |
| Max. Bending Degree | 185° |
| Motor Power | 7.5Kw |
| Hydraulic System Hydraulic Drive Pressure | 14Mpa |
| Fuel Tank Capacity | 190L |
| Net Weight | 2500Kg |
| Dimension (L x W x H) | 3700mm * 840mm * 1300mm |
| Core Components | Motor, Gear |
| Power Type | Hydraulic |
| Degree Of Automation | Semi-automatic |
| Motor Brand | Taihu |
| Main Body Brand | Chittak |
| Elbow Head Brand | Chittak |
| Pump Brand | Keister |
| Manifolds Brand | Chittak |
| PLC Brand | Delta |
| AC Contactor Brand | TECO |
| Certification | ISO 9001:2000 |
| Warranty Period | 1 Year |
| Core Component Warranty Period | 2 Years |
