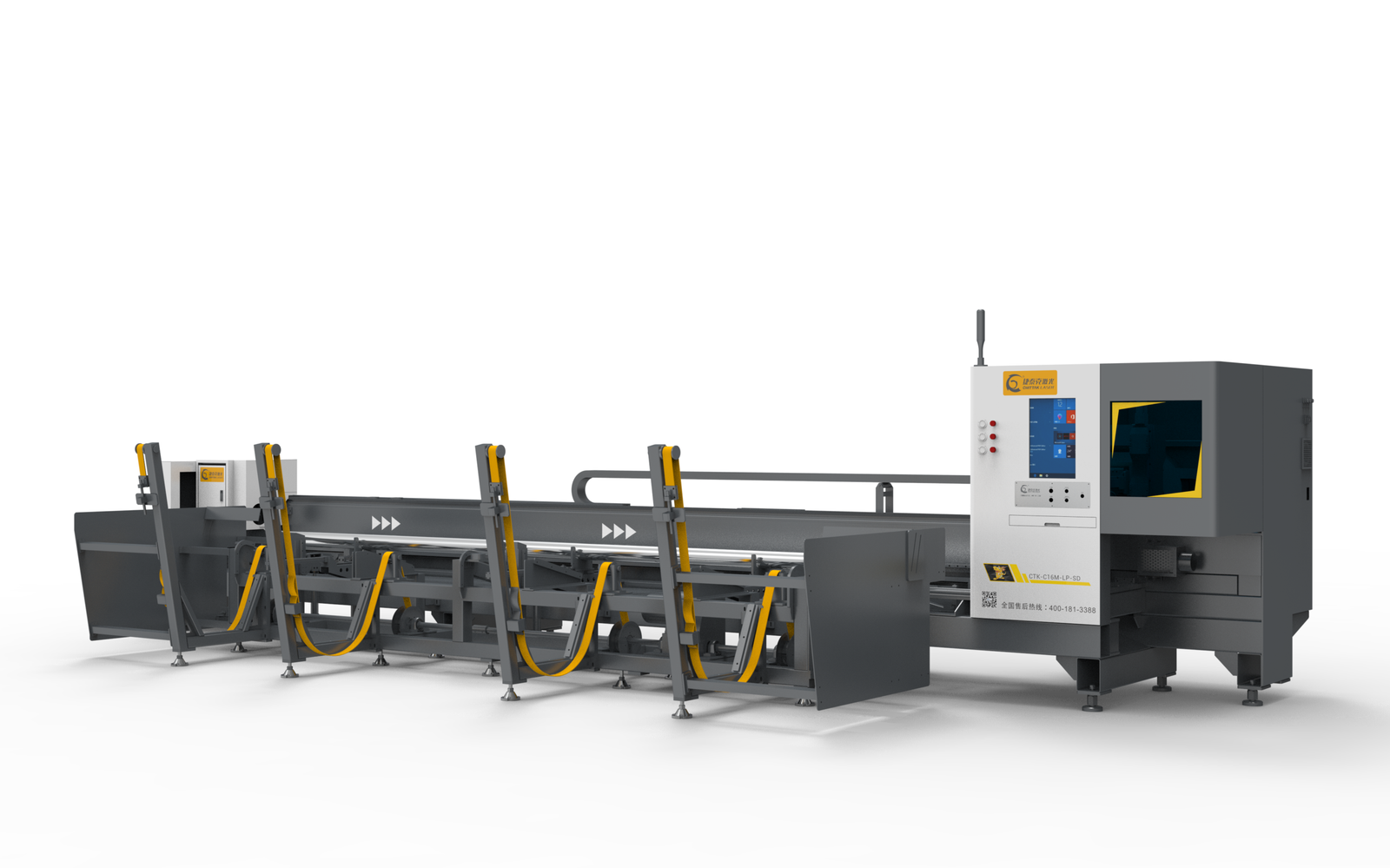

CTK-C12M-LN-SD High Speed 45° Slant Bed Laser Pipe Cutting Machine

High-Rigidity 45° Slant Bed Structure

The machine bed adopts a 45° slant design, welded with high-strength steel plates and annealed to eliminate internal stress. This heavy-duty 4.0T structure ensures high stability and vibration absorption during high-speed cutting, significantly improving the precision of the laser pipe cutting machine.

Ultra-High Speed Processing

Equipped with a high-speed servo motor system, the chuck rotation speed reaches up to 150 rpm/min, and the positioning accuracy is ±0.03mm. This superior speed and precision make it an ideal choice for high-volume manufacturing industries requiring strict tolerances.

Intelligent CNC System with Automatic Loading

The self-developed intelligent CNC system supports direct drawing and data import, simplifying operation. The fully automatic loading system handles tubes from 5700mm to 6500mm in length, enabling continuous, unmanned operation for the laser pipe cutting machine.

Material Saving & Short Tailing

The advanced side-mounted chuck design allows for a short tailing length of ≥50mm, maximizing material utilization. This feature significantly reduces waste, making the machine cost-effective for processing expensive metal materials.

Fast Cycle Times

The machine features rapid dynamic performance with an acceleration of 1.5G, and the non-cutting fast moving speed can reach 120m/min. The loading cycle time is reduced to just 18 seconds (minus 5 seconds for overlapping operations), ensuring maximum throughput for the laser pipe cutting machine.
