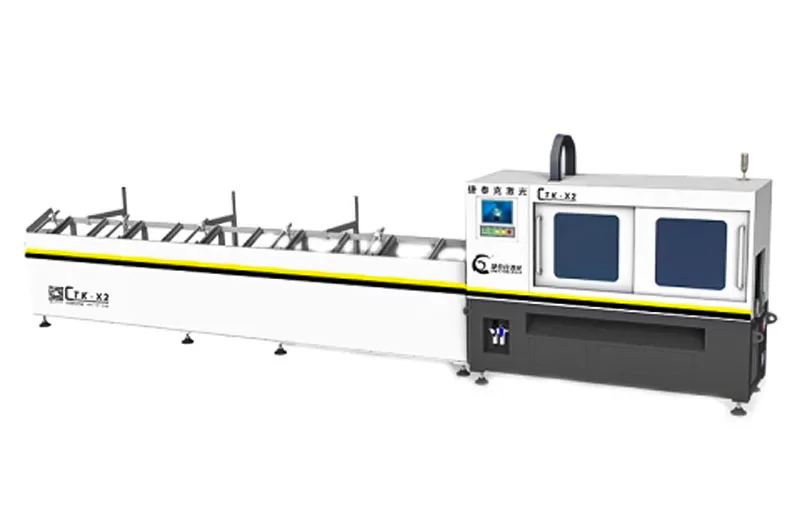

Fiber Laser Cutting Machine for Metal
Model No. : CTK-X2
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
Shops use this class of machine for supermarket shelving, display racking and other profile-intensive products. It suits makers of fitness equipment, outdoor furniture and stainless architectural tube work. Ask for cutting videos on your actual tube material and wall before comparing prices. Ask the export team for lead times, Incoterms and the matching tooling list.
Guides from the factory floor
- Tube laser cutting machine parts explained — what the source, chucks, head and controls each do
- Tube cutting thickness & speed charts — published cut data by material and wall
- Tube laser cutting machine price guide — where the budget actually goes
Buy direct from the Chittak factory in Foshan, China: MOQ one set, FOB / CIF / EXW incoterms, ocean shipping to major ports and factory-direct pricing.
Maximize pipe utilization
Please see the parameter table for details.
High-speed cutting, one per second
The chuck rotates at high speed, and it only takes 0.7 seconds to make one rotation.
Slag extraction system (optional)
Solve the problem of no residue of metal slag on the inner wall, eliminating the need for secondary vibration grinding process.
Intelligent pipe cutting system, easy to learn and operate
Self-developed system, easy to learn and operate, can diagnose faults remotely.
High precision chuck
The clamping speed is fast, the clamping force can be adjusted flexibly, the clamping function is forcibly released, which can realize loading and unloading without stopping, and improve the efficiency.
Column-type automatic feeding system
Automatic feeding after listing.
Stable automatic feeding design.
Scratch resistant design.
Left and right machine customization
One person can see more than one machine, and can reduce machine floor space and turn over area, save factory rent.
| Laser Power | 1000W / 1500W / 2000W / 3000W |
| Voltage / Power | 380V, 50HZ, 3.3KW (Excluding laser generator and chiller) |
| Pipe Processing Range | Round Tube: φ10mm – φ65mm Processing Length Range: φ15mm – φ1000mm (Other lengths can be customized) |
| Tailing Length | ≥40mm |
| Size | About 8000mm × 1800mm × 2225mm |
| Cutting Speed | 12m / min (Depending on the material and thickness) |
| Cutting Gap | 0.1mm – 0.2mm |
| Cutting Materials | Stainless Steel, Carbon Steel, Galvanized, Iron, Copper, Aluminum |
| Cutting Shapes | Round Tube, Rectangular Tube, Special-shape Tube, I-beam, Channel Steel, Angle Iron |
| Laser Type | Fiber Laser |
| Support Graphic Format | Plt, Ai, Dxf, Bmp, Dst, Dwg, Las, Dxp |
| Core Components | Motor, Gear, Gearbox, Bearing |
| Whether CNC | Yes |
| Cooling Method | Water Cooling |
| Laser Generator Brand | BWT |
| Servo Motor Brand | Delta |
| Linear Guide Brand | Hiwin |
| Control System Brand | Chittak |
| Laser Head Brand | Ospri |
| Reducer Brand | Wanxin |
| Certification | ISO, CE |
| Warranty Period | 1 Year |
| Core Component Warranty Period | 2 Years |
