Case Study: German Furniture Maker Cut Setup Time 73% with CHITTAK

In the competitive world of custom furniture manufacturing, every minute spent on machine setup is minutes taken away from production. For a mid-sized furniture maker in Baden-Württemberg, Germany, excessive setup time on their legacy tube laser cutting system was becoming a critical bottleneck — especially as they took on more complex, small-batch orders from architectural and interior design clients.

Their solution? Switching to a CHITTAK high-precision tube and plate laser cutting system. The results, documented in this tube laser furniture case study, show a **73% reduction in setup time**, a **41% increase in daily output**, and a **payback period of under 14 months**.

The Challenge: Complex Orders, Manual Setup, Rising Costs

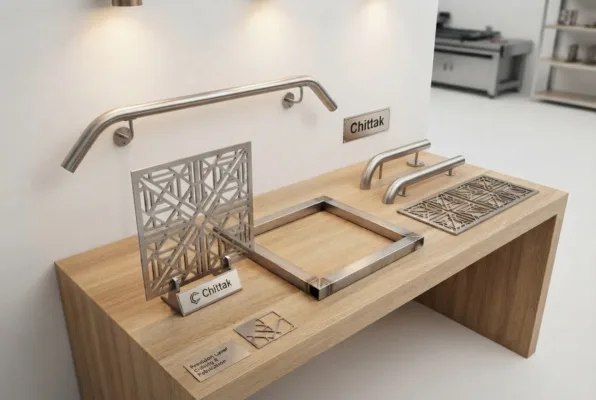

The company specializes in custom metal furniture frames, railings, and decorative structures — pieces that combine tubular steel, square profiles, and solid sheet metal. Their workflow demanded frequent material changes, varying wall thicknesses, and intricate cut patterns that pushed their old laser system to its limits.

• Average setup time per job: 45–60 minutes of manual focus adjustment, nozzle selection, and program calibration
• Material mix: Carbon steel tubes (10–120 mm diameter), stainless steel profiles, and 1–6 mm sheet metal
• Order profile: 60% small batches (1–50 pieces), 30% medium batches (51–200), 10% repeat production
• Pain point: Changeover time consumed nearly 35% of total machine uptime, limiting throughput and delaying deliveries

Management knew they needed a laser cutting system that could handle the diversity of their furniture production without sacrificing precision — and without keeping operators tied to manual configuration tasks.

Why CHITTAK? Evaluating Tube Laser Solutions for Furniture Manufacturing

After evaluating several vendors, the company shortlisted three tube laser systems for a side-by-side trial. The decision criteria included:

• Automated focus adjustment for rapid material changes
• Tolerance consistency across tube, profile, and sheet geometries
• Software integration with their existing CAD/CAM workflow
• Total cost of ownership, including consumables and maintenance
• Technical support responsiveness in the DACH region

The CHITTAK fiber laser tube cutter stood out for three reasons that directly addressed their pain points:

• Auto-focus lens system: CHITTAK\u2019s integrated autofocus eliminates manual focus adjustment between jobs, adapting in seconds to different tube diameters and cutting heights.

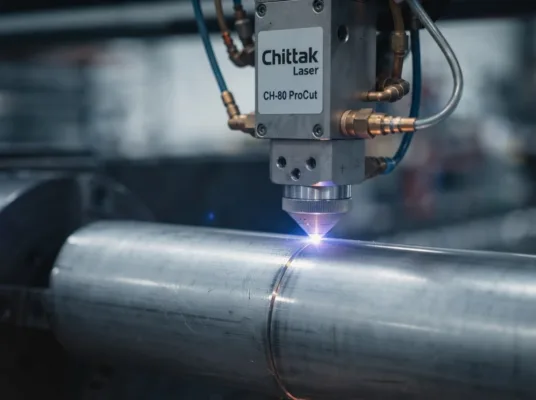

• High-precision linear guide motion: The CHITTAK cutting head maintains consistent beam focus and kerf width across the full working range, critical for the tight tolerances required in furniture assembly.
• Smart nesting and dual-station loading: CHITTAK\u2019s nesting software optimizes material utilization for mixed-profile orders, while the dual-station loader enables continuous operation by allowing the next job to be loaded while the current one cuts.

Implementation: CHITTAK Tube Laser System Goes Live

The installation was completed in five days, including mechanical setup, software configuration, and operator training. CHITTAK\u2019s technical team worked on-site for two days to calibrate the system for the facility\u2019s most common material types and profile geometries.

Key configuration highlights:

• Laser source: CHITTAK 1 kW and 2 kW fiber laser modules (switchable for material flexibility)
• Tube capacity: Round tubes 10–120 mm, square/rectangular profiles up to 100×100 mm
• Sheet integration: Optional table adapter for flat-goods cutting up to 6 mm thickness
• Cutting gas: Compressed air assist for carbon steel (reducing gas costs by ~60% vs. nitrogen)

Results: 73% Faster Setup, 41% More Daily Output

Three months after commissioning, the company measured the performance impact across their full furniture production line. Here\u2019s what changed:

Setup Time Reduction

The most immediate improvement was in changeover speed. With CHITTAK\u2019s automated focusing and preset cutting parameter libraries, operators select the material type and profile from the touchscreen interface, and the machine configures itself in under 10 minutes — compared to the previous 45–60 minutes of manual work.

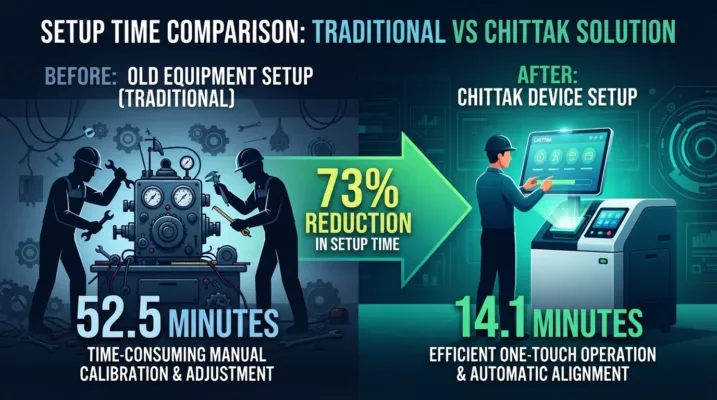

Result: Average setup time dropped from 52.5 minutes to 14.1 minutes — a 73% reduction.

Daily Production Increase

Faster setup meant more cutting cycles per shift. Combine

Product

d with the dual-station loading system, which eliminated idle time between jobs, the facility saw a measurable jump in daily throughput:

• Before CHITTAK: 12–15 cutting jobs per day
• After CHITTAK: 20–26 cutting jobs per day
• Increase: 41%

This gain was particularly impactful for the company\u2019s small-batch business. Jobs that previously required a full setup cycle could now be turned around in hours rather than days, improving delivery reliability and enabling them to accept shorter-lead-time orders.

Quality and Material Savings

Beam stability and focus consistency delivered by the CHITTAK system also improved cut quality. Edge finish requirements were reduced on many furniture components, eliminating a secondary deburring step on approximately 30% of parts.

Smart nesting software contributed to a 12% improvement in material utilization across mixed-profile orders — translating to significant annual savings on raw tube and sheet stock.

Operator Perspective: Simpler Workflow, Less Fatigue

Operator feedback has been overwhelmingly positive. The CHITTAK control interface is intuitive, and the automated parameter selection reduces the cognitive load on operators who previously had to manually calculate focus distance, gas pressure, and cutting speed for each unique job combination.

One senior operator noted: \u201cBefore, I spent half my shift setting up machines. Now I spend half my shift actually watching the cuts happen and checking quality. It\u2019s more satisfying work, and we\u2019re getting more done.\u201d

ROI Analysis: Payback in Under 14 Months

The company calculated their return on investment based on three primary factors:

• Labor savings: Reduced setup time freed 1.5 operator-hours per day, equivalent to €18,500/year in labor reallocation
• Increased throughput: 41% more jobs per day generated an estimated €47,000/year in additional revenue from new capacity
• Material optimization: 12% better nesting utilization saved approximately €12,200/year in raw material costs

Total annual benefit: ~€77,700

With the CHITTAK system installed at a total cost of approximately €105,000 (including training and initial consumables), the simple payback period was calculated at 13.5 months. At 18 months, the system had already paid for itself, and every month thereafter represents net positive return.

Why This Tube Laser Furniture Case Study Matters for Your Business

If you manufacture metal furniture, railings, structural components, or any product that combines tubular and sheet materials, this tube laser furniture case study demonstrates what\u2019s possible when you pair the right equipment with a diverse production profile.

The key takeaway: setup time is the silent profit killer in small-batch manufacturing. Every minute spent configuring your laser cutter is a minute not generating revenue. Systems like the CHITTAK tube and plate laser cutting center are purpose-built to eliminate that waste through automation, intelligent software, and precision engineering.

About CHITTAK

CHITTAK is a leading manufacturer of industrial fiber laser cutting systems, specializing in tube, profile, and plate laser cutting solutions for metal fabrication and furniture manufacturing. With a global presence and dedicated technical support in the DACH region, CHITTAK delivers high-precision, high-throughput laser cutting systems that help manufacturers reduce waste, accelerate production, and improve profitability.

Ready to See the Results for Yourself?

Contact CHITTAK today to schedule a live demonstration at their application center. Bring your own material samples and CAD files, and see firsthand how a CHITTAK laser cutting system can transform your furniture production workflow.

Visit the CHITTAK website or request a quote for tube laser systems tailored to your furniture manufacturing needs.
