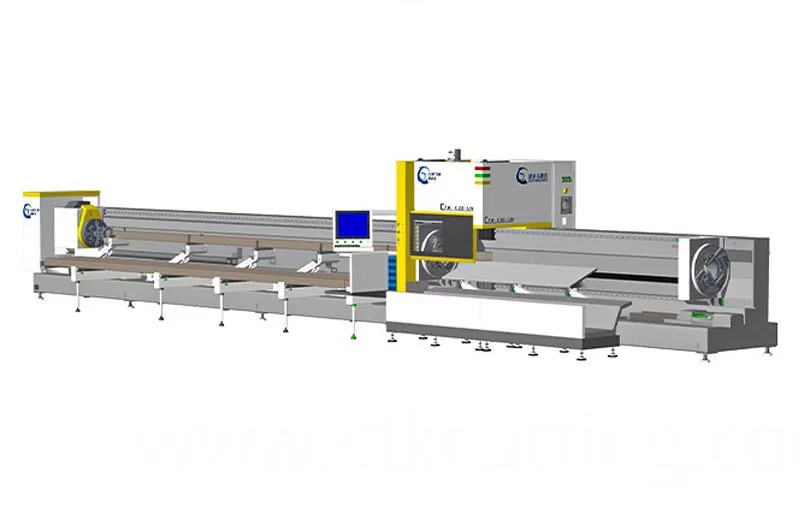

Fiber Laser Metal Cutting Machine
Model No. : CTK-C22-LN
Payment Type : T/T, Others
Incoterms : FOB, CIF, EXW
Min. Order : 1 Set
Transportation : Ocean
Port : Foshan Port, Guangzhou Port, Shenzhen Port
Shops use this class of machine for supermarket shelving, display racking and other profile-intensive products. It suits makers of fitness equipment, outdoor furniture and stainless architectural tube work. Ask for cutting videos on your actual tube material and wall before comparing prices. Ask the export team for lead times, Incoterms and the matching tooling list.
Guides from the factory floor
- Tube laser cutting machine parts explained — what the source, chucks, head and controls each do
- Tube cutting thickness & speed charts — published cut data by material and wall
- Tube laser cutting machine price guide — where the budget actually goes
Buy direct from the Chittak factory in Foshan, China: MOQ one set, FOB / CIF / EXW incoterms, ocean shipping to major ports and factory-direct pricing.
Super processing performance
Please see the parameter table for details.
Skip cut, short tailing
When cutting the last work piece, the front chuck moves forward, and the cutting head performs cutting process behind the front chuck.
Cypetube control system,Know more about pipe cutting
The high performance Cypetube control system is a PC numerical control system based on WINDOWS, which has the characteristics of fast interpolation calculation speed and convenient operation.
Machine bed is solid and durable
The main machine bed is welded with plate and tube, which conforms to the mechanical structure and has good cutting stability.
Standard column type feeding system
The feeding does not need to be stopped, and it can realize 24-hournon-stop operation.
| Laser Power | 1500W / 2000W / 3000W |
| Pipe Processing Range | Round Tube: φ12mm – φ220mm Square Tube: φ12mm – φ160mm (Side Length) |
| Manual Feeding Length | 7000mm |
| Automatic Feeding Length | 5800mm ~ 6500mm (Non-standard 5000mm ~ 7000mm) |
| Cycle Feeding | First Feeding ≤ 50, Subsequent Feeding ≤ 18 |
| Loader Carrying | 500kg |
| The Max. Load-bearing Capacity of a Single Pipe for Manual Feeding | 200kg |
| The Max. Load-bearing Capacity of a Single Pipe with Automatic Feeding | 160kg |
| Cutting Materials | Stainless Steel, Carbon Steel, Galvanized, Iron, Copper, Aluminum |
| Cutting Shapes | Round Tube, Rectangular Tube, Special-shape Tube, I-beam, Channel Steel, Angle Iron |
| Laser Type | Fiber Laser |
| Support Graphic Format | Plt, Ai, Dxf, Bmp, Dst, Dwg, Las, Dxp |
| Core Components | Motor, Gear, Gearbox, Bearing |
| Whether CNC | Yes |
| Cooling Method | Water Cooling |
| Loading Device | Semi-automatic Feeding System |
| Laser Generator Brand | BWT |
| Servo Motor Brand | Inovance |
| Control System Brand | Cypcut |
| Laser Head Brand | Ospri |
| Reducer Brand | Shimpo |
| Electrical Element Brand | Schneider |
| Machine Bed and Accessories Brand | Chittak |
| Front and Rear Pneumatic Chuck Brand | Chittak |
| Certification | ISO, CE |
| Warranty Period | 1 Year |
| Core Component Warranty Period | 2 Years |
